Lift 3000mm Standing 9.84ft 3t Electric Pallet Truck With Lightweight Forlogistics And Warehouse

Brand Name : KAD

Model Number : CDD1530

Certification : CE

Place of Origin : China

MOQ : 1unit

Price : ＄2000-＄3000 /unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500units/month

Delivery Time : 15 working days

Packaging Details : Iron pallet+plastic film

Color : Red/Customized

Product Name : Electric Forklift

Load Center : 500mm

Load capacity : 1000-1500kg

Load height : 3000mm

Feature : High Efficiency

Battery Cpacity : 24V/80Ah

Contact Now

Product Description

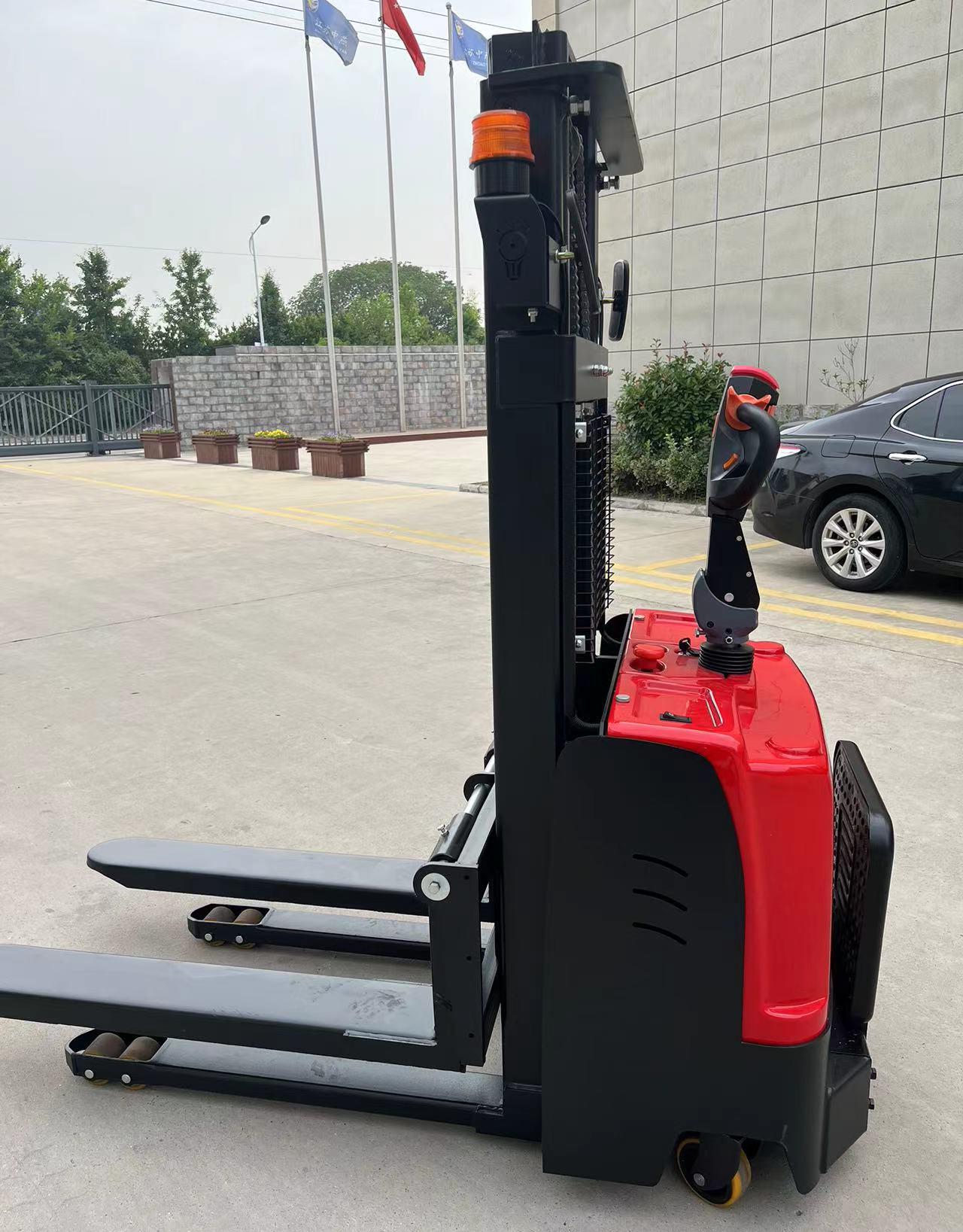

Lift 3000mm Standing 9.84ft 3t Electric pallet truck with Lightweight forlogistics and warehouse

The standing electric forklift operates efficiently by leveraging a combination of key components. It is powered by an electric motor and battery pack, allowing for smooth and quiet operation. The hydraulic system facilitates the lifting and tilting of loads, while the maneuverability is enhanced by the precision control of the steering and drive mechanisms. Standing operators can efficiently handle materials in various environments, thanks to the ergonomic design and intuitive controls of the forklift.

Lift 3000mm Standing 9.84ft 3t Electric Pallet Truck With Lightweight Forlogistics And Warehouse

Lift 3000mm Standing 9.84ft 3t Electric Pallet Truck With Lightweight Forlogistics And Warehouse

Lift 3000mm Standing 9.84ft 3t Electric Pallet Truck With Lightweight Forlogistics And Warehouse

Main Features

1. Medium intensity material handling, stacking and loading/unloading.

2. Designed for narrow aisles .

3. Only suitable for single-sided pallet use.

4. High-strength vertical gearbox improves transmission efficiency, reduces transmission noise, and has a long working life.

5. Folding pedals provide a comfortable working environment for operation.

6. Large-capacity battery ensures long time use.

Specification
Model
CDD1030
CDD1530
Load Capacity
kg
1000
1500
Lifting Height
mm
3000
3000
Load Center
mm
500
500
Fork size
mm
1100*170*50
1100*170*50
Minimum Ground Clearance
mm
30
30
Pedal Length
mm
410
410
Handler Height
mm
1490
1490
Outer Distance between Forks
mm
685
685
Inner Distance between Forks
mm
345
345
Tyre Type
Polyurethane
Polyurethane
Control Way
Handler
Handler
Speed Regulation Way
Stepless Speed Regulation
Stepless Speed Regulation
The Min.Turning Radius
mm
1450
1450
Driving Speed with Full Loads
km/h
4
4
Maximum gradient climb with full load
°
3°/5°
3°/5°
Battery
V/Ah
24V/80A
24V/80A
Driving Motor
kw
0.75
0.75
Lifting Motor
kw
2.2
2.2
Tyre Size
mm
210/80
210/80
Overall dimensions(L*W*H)
mm
1880*860*2100
1880*860*2100
Weight
kg
580
600
Reference Working Time
h
3
3
lncreased height each tonnage
mm
1600/2000/2500/3000/3500
Max height
2100/1600/1850/2100/2350

Applications of Lightweight Electric Pallet Stacker

Lightweight Electric Pallet Stacker have a wide range of applications in the logistics and warehousing industry, mainly including the following aspects:
1. loading and unloading of goods: lightweight electric forklift trucks are suitable for loading and unloading of goods, can quickly and safely remove the goods from the shelves or place them on the shelves.
2. Cargo handling: lightweight electric forklift trucks can be used for cargo handling operations, and can quickly move goods inside the warehouse to improve work efficiency.
3. Warehouse management: lightweight electric forklift trucks can help warehouse managers to quickly and efficiently organize the goods in the warehouse, yardage and inventory work.
4. material transportation on production line: on the production line, the lightweight electric forklift truck can be used for material supply and transportation, which improves the production efficiency.
